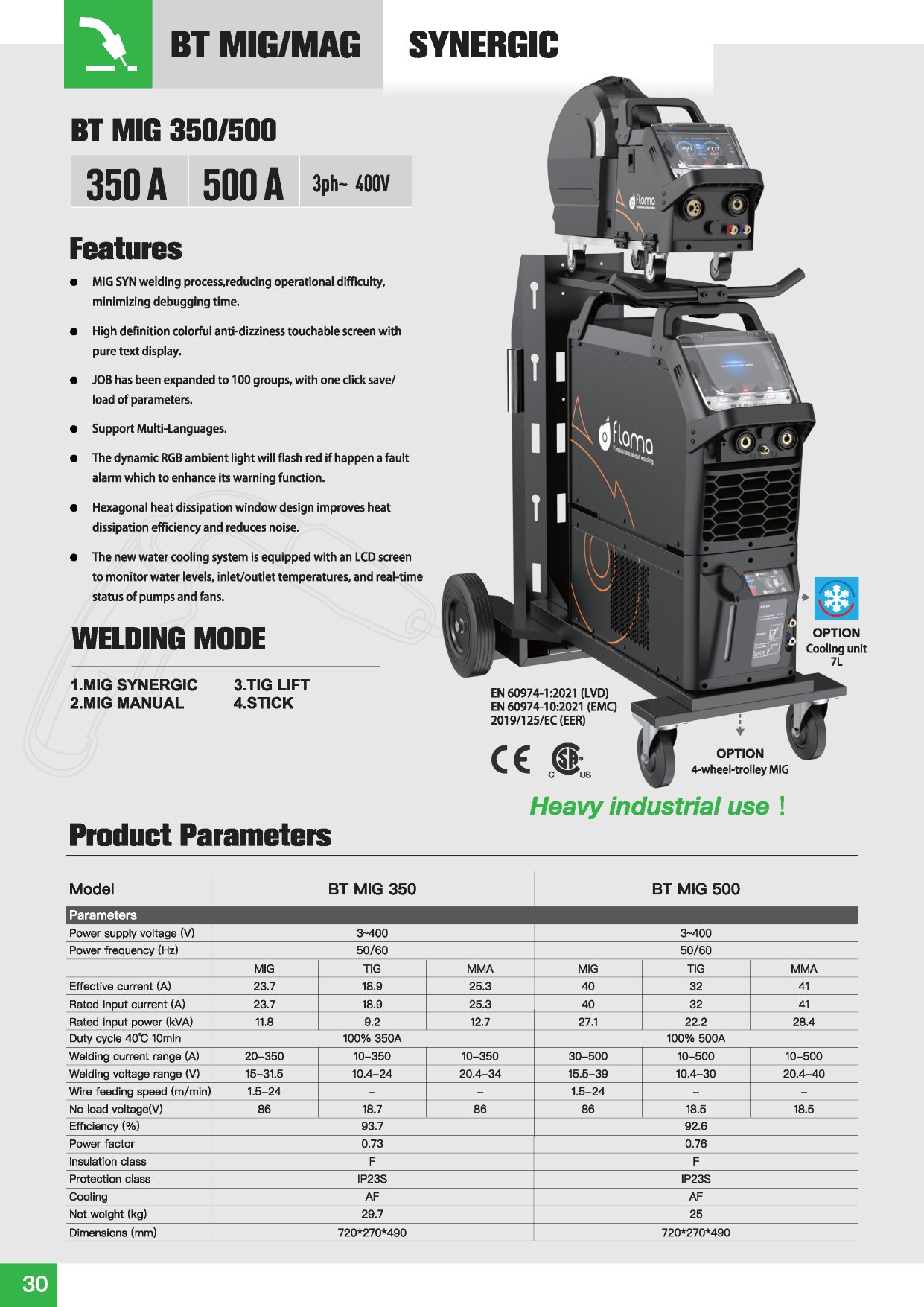

Parameters

• model

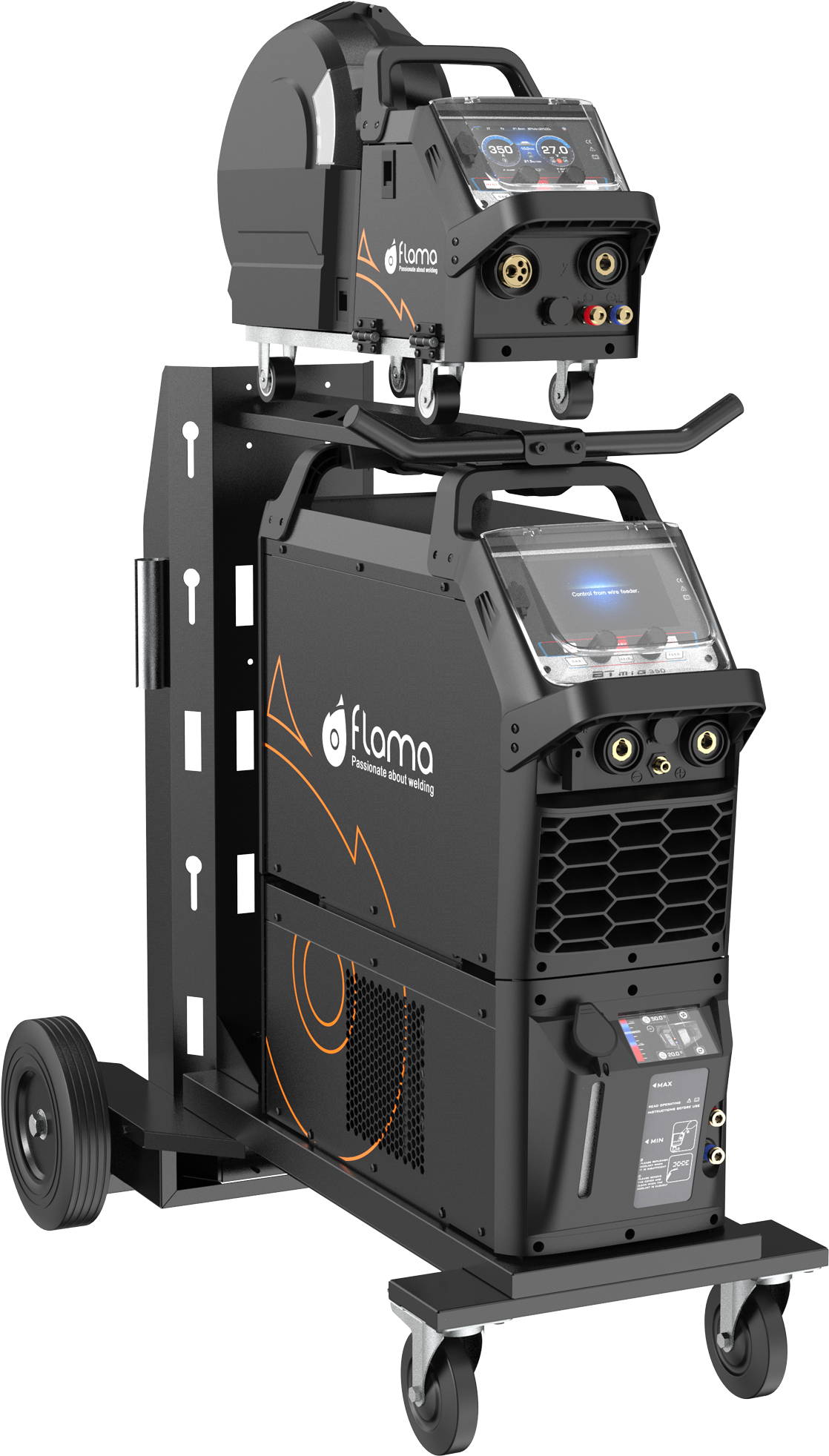

  BT MIG 350

  BT MIG 500

• power supply voltage(V)

  3~400

  3~400

• Fre.(HZ)

  50/60

  50/60

• MIG

  TIG

  MMA

  MIG

  TIG

  MMA

• Effective current (A)

  17.6

  14.7

  18.6

  28.4

  23.7

  30.1

• Rated input current(A)

  22.7

  19.0

  24.0

  36.7

  30.6

  38.8

• Rated Input Power (KW)

  15.7

  13.2

  16.6

  25.4

  21.2

  26.9

• Duty Cycle(40℃ 10Min)

  60% 350A 100% 275A

  60% 500A 100% 390A

• Welding Current Range(A)

  30-350

  10-350

  10-350

  40-500

  10-500

  10-500

• Welding Voltage Range(V)

  15.5-31.5

  10.4-24

  20.4-34

  16-39

  10.4-30

  10.4-30

• Wire Feeding Speed (m/min)

  1.5-24

  -

  -

  1.5-24

  -

  -

• No Load Voltage(V)

  77

  73

  77

  94

  93

  94

• Efficiency

  90

  87.7

  90.7

  89.7

  86.2

  88.0

• power factor

  0.78

  0.73

  0.80

  0.86

  0.83

  0.85

• Insulation Class

  F

  F

• Protection Class

  IP21S

  IP21S

• Cooling

  AF

  AF

• Net Weight(Kg)

  30

  34.5

• Dimensions(mm)

  700*270*490

  700*270*490
